15" Chassis Monitor / Rear Mount / Touch Screen
Touchscreen 15" Chassis Monitor / Rear Mount / Touch Screen
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 Million
Brignthess / Contrast 250 cd/m2 (typ) / 500 : 1
Response Time ± 12 ms
Viewing Angle (typical) H. 130° (- 65° ~ + 65°), V. 100°(- 55° ~ + 45°)
Light Source CCFL, Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz, Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration, Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages, Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 20 watt, Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification FCC, CE

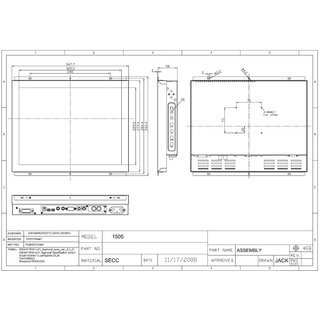

Dimensions Physical With Flanges(W x H x D) : 347.7 x 284.4(screw-to-screw) x 59.0(mm)
Without Flanges(W x H x D) : 347.7 x 272.4 x 59.0(mm)
Carton W x H x D = 419 x 380 x 142 mm
Weight N.W. / G.W. 4.0 Kgs / 5.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets, By pallet)
Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
Infrarded Sun Light Readable Light Ssensor
Auto-Dimming
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 Million
Brignthess / Contrast 250 cd/m2 (typ) / 500 : 1
Response Time ± 12 ms
Viewing Angle (typical) H. 130° (- 65° ~ + 65°), V. 100°(- 55° ~ + 45°)
Light Source CCFL, Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz, Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration, Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages, Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 20 watt, Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification FCC, CE
Dimensions Physical With Flanges(W x H x D) : 347.7 x 284.4(screw-to-screw) x 59.0(mm)
Without Flanges(W x H x D) : 347.7 x 272.4 x 59.0(mm)
Carton W x H x D = 419 x 380 x 142 mm
Weight N.W. / G.W. 4.0 Kgs / 5.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets, By pallet)
Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
Infrarded Sun Light Readable Light Ssensor
Auto-Dimming
