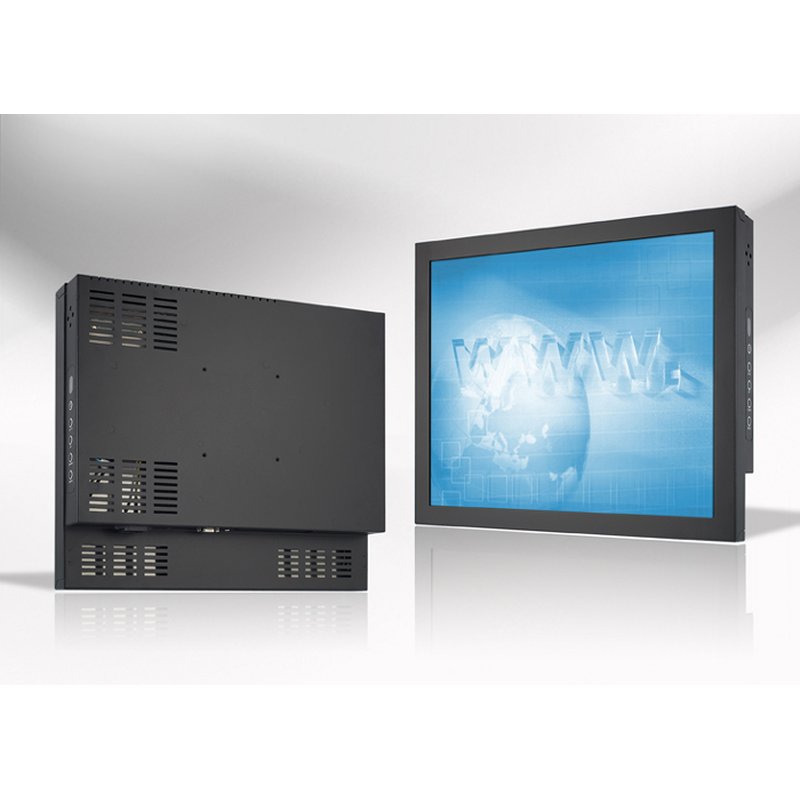

20" Chassis Monitor / Touch Screen
Touchscreen 20" Chassis Monitor 800x600 / Touch Screen
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 20.1" viewable diagonal area
Active Area / Pixel Pitch 408.0(H) x 306.0(V) mm / 0.51(H) x 0.51(V) mm
Native Resolution / Colors 800(H) x 600(V) / 16.7 Million
Brignthess / Contrast 450 cd/m2 (typ) / 700 : 1
Response Time ≤ 16 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80°), V. 140°(- 60° ~ + 80°)
Light Source CCFL, Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz, Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC Outlet
Convenient Features Auto Calibration, Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages, Wall Mount Ready (VESA 100 x 100 mm)
Power Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 43 watt, Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification FCC, CE
Dimensions Physical With Base(W x H x D) : TBD
Without Base(W x H x D) : 464.6 x 360.6 x 71.0(mm)
Carton W x H x D = 560 x 463 x 205 mm
Weight N.W. / G.W. 6.7 Kgs / 7.7 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets, By pallet)
Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
Infrarded Sun Light Readable Light Ssensor
Auto-Dimming
