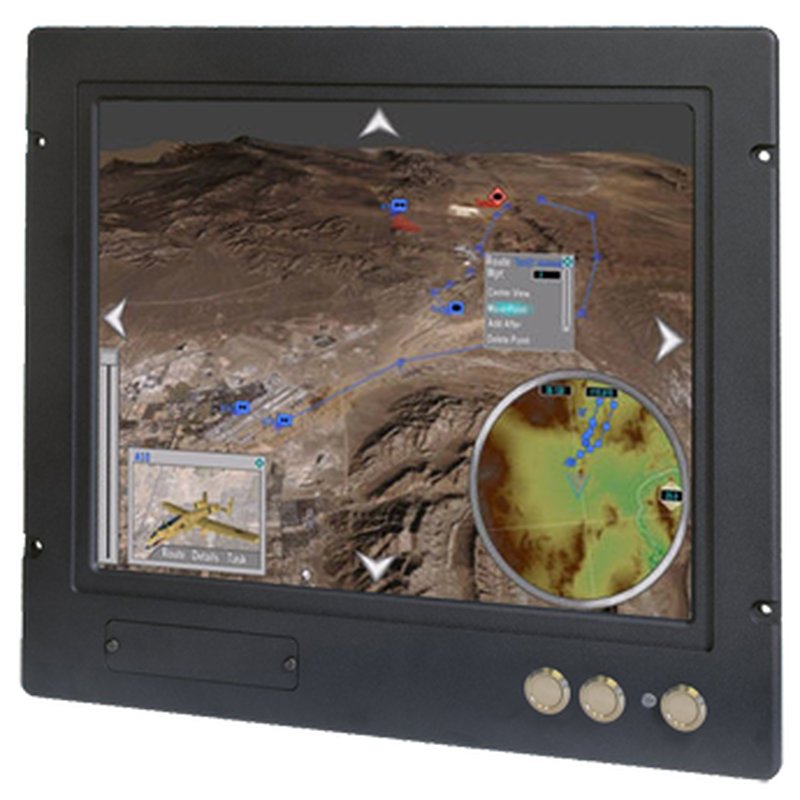

15" Rack Mount Monitor
15" Rack Mount Monitor
KME has Militarised a high resolution TFT panel to develop a rack-mount monitor suitable for military applications. Resolutions up to 1024 x 768 pixels can be displayed with superb image quality.
To aid installation, flexible mounting combinations include front rack-mount, VESA standard fixings at the rear and a separate mounting bracket for Control Desk or Overhead positioning. The Monitor is manufactured in full compliance with Mil-STD-461E, Mil-STD-810F and IEC 60945.
KME has Militarised a high resolution TFT panel to develop a rack-mount monitor suitable for military applications. Resolutions up to 1024 x 768 pixels can be displayed with superb image quality.
To aid installation, flexible mounting combinations include front rack-mount, VESA standard fixings at the rear and a separate mounting bracket for Control Desk or Overhead positioning. The Monitor is manufactured in full compliance with Mil-STD-461E, Mil-STD-810F and IEC 60945.
15" Rack Mount Monitor
KME has Militarised a high resolution TFT panel to develop a rack-mount monitor suitable for military applications. Resolutions up to 1024 x 768 pixels can be displayed with superb image quality.
To aid installation, flexible mounting combinations include front rack-mount, VESA standard fixings at the rear and a separate mounting bracket for Control Desk or Overhead positioning. The Monitor is manufactured in full compliance with Mil-STD-461E, Mil-STD-810F and IEC 60945.
Product Specification
Max Resolution:
1024 x 768 pixels
Active Display Area:
304.1 x 228.1mm
Contrast Ratio:
450:1 typical
Brightness:
250cd/m2 typical
Viewing Angles
130 0 / 110 0
Connector:
MIL type
Power Supply:
90-265V AC 50-60Hz
Power Consumption:
50W (Max)
Monitor Dimensions:
430(w) x 363(h) x 95(d) mm (approx)
Monitor Weight:
12kg Max.
